供應信息-北京磁力泵的生產廠家——DR磁力驅動導熱油泵 |
|
|
|
 |
|
|
參考資料：http://www.hichine.com 海泰美信工業設備（北京）有限公司

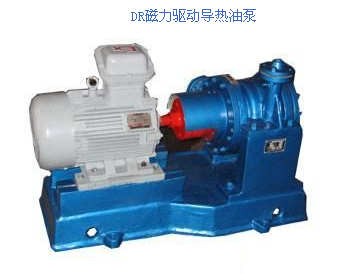

DR磁力驅動導熱油泵
|
DR磁力驅動導熱油泵
|
|
DR型系列泵，可耐高溫至400℃的熱傳送流體，專用于高溫?zé)嵊图訜釄?chǎng)合，油浴設計和冷卻散熱系統，保證軸承和磁傳動部件的使用壽命，已經在石化行業廣泛使用，是一種理想的高溫?zé)嵊脱h(huán)泵。
|
|
|
DR series pumps can transmit the hot lluid which permit high temper-
ature about 400"C, be used lo the system ol heat using high temper-
ature. design of oil bath . cooling and disperse heat. II is a perfect hot oil pump with recirculalion which can ensure using -lile of bearing and magnetic -driving pans. been used to petrifaction industry widely.
|
海泰美信工業設備（北京）有限公司是北京一家專門做泵閥的生產廠家 歡迎來電咨詢洽談 咨詢熱線 010-83265380
|
性能范圍The main specifications :
|
|
*流量 Capacity 1.6~400m 3 /h * 揚程Head: 20~125m * 溫度Temperature: -45℃ ～ +420 ℃
|
|
結構特點 :
|
|
（１）單級單吸，軸心線水平面支承
（２） 進口軸向吸入，出口垂直向上
（３） 獨特的散熱冷卻系統
（４） 根據熱媒體溫度采用滾動和滑動式的不同結構
|
|
The features:
|
|
（１）Single-stage, single-suction, level supporting for axes line
（２）Inlet is axial direction, outlet is upwards vertically
（３）Fixed with cooling and disperse heat equipment.
（４）Whether anti -friction or plain -friction bearing Is decided by the temperature of hot medium
|
|
標準性能表 Specifications
|
|
型號
type
|
流量Ｑ
Capacity(m3/h)
|
揚程H
Head
(m)
|
轉速n
Speed
(r/min)
|
效率η
Effi.
(％)
|
功率Kw
Power
|
汽蝕余量 NPSHr(m)
|
|
軸功率
Shaft Power
|
電機功率
Motor Power
|
|
40DR 20
|
6.3
|
20
|
2900
|
35
|
0.98
|
2.2
|
2
|
|
40DR 32
|
6.3
|
32
|
2900
|
32
|
1.77
|
3
|
2
|
|
40DR 50
|
6.3
|
50
|
2900
|
28
|
3.06
|
5.5
|
2
|
|
40DR 80
|
6.3
|
80
|
2900
|
25
|
5.49
|
7.5
|
2
|
|
50DR 20
|
12.5
|
20
|
2900
|
47
|
1.4
|
3
|
2.3
|
|
50DR 32
|
12.5
|
32
|
2900
|
42
|
2.6
|
4
|
2.3
|
|
50DR 50
|
12.5
|
50
|
2900
|
36
|
4.7
|
7.5
|
2.3
|
|
50DR 80
|
12.5
|
80
|
2900
|
30
|
9.1
|
15
|
2.3
|
|
65DR 20
|
25
|
20
|
2900
|
57
|
2.4
|
4
|
2.5
|
|
65DR 32
|
25
|
32
|
2900
|
55
|
4
|
7.5
|
2.3
|
|
65DR 50
|
25
|
50
|
2900
|
47
|
7.2
|
11
|
2.3
|
|
65DR 80
|
25
|
80
|
2900
|
40
|
13.6
|
18.5
|
2.3
|
|
65DR 125
|
25
|
125
|
2900
|
32
|
26.6
|
37
|
2.3
|
|
80DR 20
|
50
|
20
|
2900
|
63
|
4.3
|
7.5
|
3.3
|
|
80DR 32
|
50
|
32
|
2900
|
61
|
7.1
|
11
|
2.8
|
|
80DR 50
|
50
|
50
|
2900
|
56
|
12.2
|
15
|
2.8
|
|
80DR 80
|
50
|
80
|
2900
|
53
|
20.6
|
30
|
2.8
|
|
80DR 125
|
50
|
125
|
2900
|
42
|
40.5
|
55
|
2.8
|
|
100DR 20
|
100
|
20
|
2900
|
68
|
8
|
11
|
4.8
|
|
100DR 32
|
100
|
32
|
2900
|
66
|
13.2
|
18.5
|
4.3
|
|
100DR 50
|
100
|
50
|
2900
|
68
|
20
|
30
|
3.9
|
|
100DR 80
|
100
|
80
|
2900
|
61
|
35.7
|
45
|
4.1
|
|
100DR 125
|
100
|
125
|
2900
|
54
|
63
|
75
|
3.9
|
|
125DR 50
|
200
|
50
|
2900
|
68
|
40
|
55
|
4.8
|
|
125DR 80
|
200
|
80
|
2900
|
65
|
67
|
90
|
4.5
|
|
125DR 125
|
200
|
125
|
2900
|
65
|
14.7
|
132
|
4.8
|
|
150DR 20
|
200
|
20
|
1450
|
71
|
15.3
|
22
|
3.3
|
|
150DR 32
|
200
|
32
|
1450
|
69
|
25.3
|
37
|
2.5
|
|
150DR 50
|
200
|
50
|
1450
|
65
|
41.9
|
55
|
3.1
|
|
200DR 20
|
400
|
20
|
1450
|
72
|
30.3
|
45
|
4.8
|
|
200DR 32
|
400
|
32
|
1450
|
72
|
48.4
|
75
|
3.8
|
|
200DR 50
|
400
|
50
|
1450
|
71
|
76.7
|
110
|
4.1
|
|
|
|
